AC115V 50Hz Stereo Power Amplifier PA System Master Controller

Brand Name : FTD

Model Number : FC-600

Certification : CE

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500PCS Per Month

Delivery Time : 10-15 work days

Packaging Details : Carton

Power Supply : AC220V or 115V, 50-60Hz

Power Consumption : 500W

THD : <0.05%

S/N Ratio : >75dB

Output Impedance : 47KΩ

Weight : 12.7kg

Contact Now

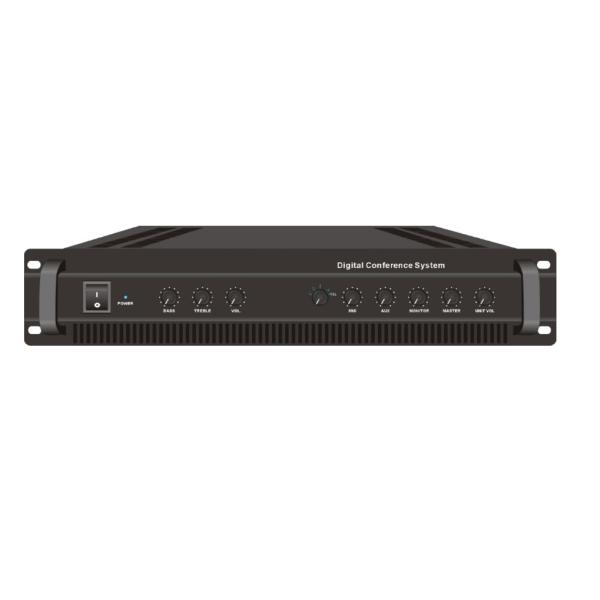

Built-In Stereo Power Amplifier Digital Conference System Master Controller

Product Description

AC115V 50Hz Stereo Power Amplifier PA System Master Controller

Features

The conference system controller is specially designed for discussion system.

Cost-effective and excellent voice restoration system.

Ideal use in board room, meeting room, conference room in hotel, office and government.

The capacity of system is 60 units and max 250 units by cascaded more extension controller.

Voting, simultaneous interpretation and auto video tracking function are optional functions.

Support multiple discussion modes: free, first in first out, and limited discussion.

Amplifier with overload, high temp and short-circuit protection.

Built-in 1W monitor speaker to monitor the system performance.

With one aux output, one line output and TEL input for telephone conference system.

With REC output for recording system like DVR or recorder.

With Effecter input and output for EQ, mixer and DSP.

With one RS232 communication port for central control system

AUX and AUX output for extra sound amplification equipments.

Bass, treble, MIC, AUX, Monitor and Master volume control.

Included with one 13 meters cable with 8 PIN plug.

Specification

Model	FC-600
Description	Conference System Controller
System Capacity	60 units and 250 units by cascaded more extension controller
Connection Way	Bus way, each microphone unit connected to the main line
Power Supply	AC220V or 115V, 50-60Hz
Power Consumption	500W
THD	<0.05%
S/N Ratio	>75dB
Frequency Response	100Hz-18KHz
Input	One aux, one mic, one effecter, one RJ45 port for telephone input or video controller and one RS232 port for central control system
Output	One aux, one REC and one balanced XLR mixed line output, two pairs low impedance speaker outputs
Output Impedance	47KΩ
Communication Port	4 DIN ports to connect with delegate units by 8 PIN connector
Dimension	488(W)×360(D)×84(H)mm
Weight	12.7kg
